Delta RC AS delivers remote controls for the construction market. Delta RC AS has the goal to deliver a series of premium high quality remote controls for industrial use. The backbone of the new products are 30 years experience with design and production of digital µProcessor control systems.

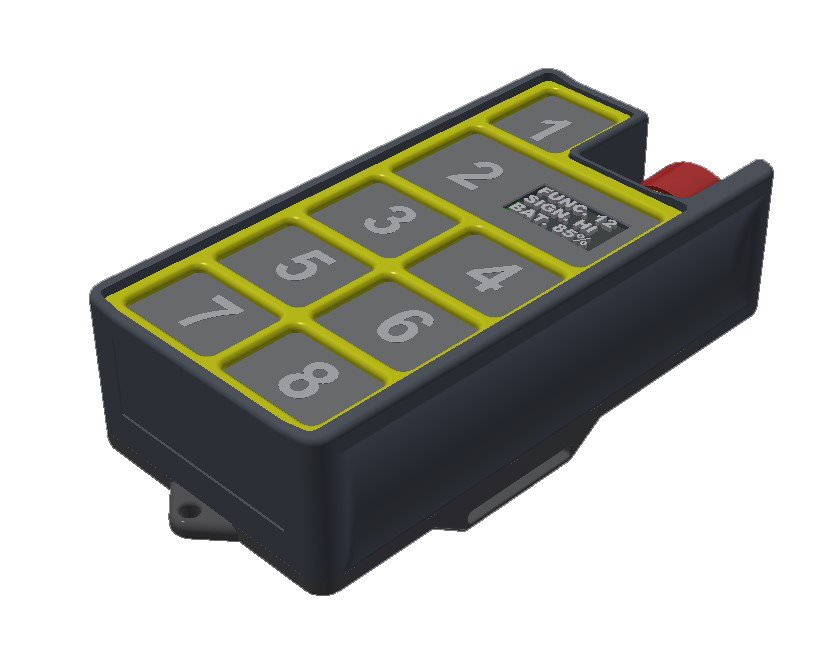

DE240 Industrial Remote Control

DE240 Industrial RC are designed to meet most requirements, also HSE. All versions are delivered with armstrap to make sure you can operate the system hands-free.

Our products are designed with focus on industrial harsh-environment operation standard, IP67. All versions of the system are available for vehicle or stationary installations. With the flexible design it will have the options of 8, 12 or 16 ON/OFF functions.

  • The system has the latest in low power bluetooth wireless communication and technology. BLE 5.x gives unique abilites for our products such as:
    Extremely long battery lifetime, over 12 months
  • Long range (100 m) antenna choice dependent
  • Two-way communication gives visual and audio warnings/info to the operator

DE214 Wireless TL RC - Wireless Truck Loading Remote Control

Delta DE214 is a robust and small remote control for up to 6 functions and stop. Both transmitter and reciever is designed to fulfill the most strict safety standards.

The transmitter has introduced a new communication, WTT – Wireless Timeshare Transmission. This means that the transmitter does not work continuously, but only 20% effective active time. Working hours with fully charged battery is about 24h with contant usage.

Part no.: 0xxx – DE214 Global TL RC set

This art.no. is a set which includes transmitter and reciever

Part no.: 03156 – TX214-2S Global TL transmitter
Part no.: 03157 – RXA214 Global TL reciever

Transmitter and reciever can be ordered separately.

Anlegget består av følgende enheter:
• Bærbar sender med innebygget batteri og med belte for å kunne bære senderen rundt livet.
• Mottaker for fastmontering, med kontakt for antenneplugg og koplingsboks for tilkopling av drivspenning og styreobjekter.
• Antenne til mottakeren for montering på stålunderlag. Består av 5 m kabel, antennefot og antennepisk.
• Lader til senderen, CH300L1 for nettdrift, 230VAC eller 12/24VDC, levere som ekstrautstyr.

Alle funksjonene fungerer etter dødmannsprinsippet.

Generelle spesifikasjoner
** Frekvens 433.920 MHz, +/- 50 kHz
** Modulasjonstype FM, +/- 30 kHz
** Datahastighet Maks 4800 bits pr. sekund
** Koding Digital koding, 65536 forskjellige koder som blir satt fra fabrikk.
** Funksjoner 2-5 funksjoner med stopp, full samtidighet eller kun en funksjon av gangen.
** Temperaturområde Drift:  20 til + 40 C
Lagring:  40 til + 70 C.
** Sjokk 1m fritt fall på betonggulv

Utstyret tilfredsstiller EU-standard: I-ETS 300220 og EN 50082-2
Dette er ihht. EU’s krav for å kunne CE-merke utstyret.
Delta og Deltas forhandler innehar nødvendig kravdokumentasjon.

1 year warranty from date of delivery.
